產品中心 - 技術可靠 品質保障
products
咨詢熱線：
136-4379-1115
品種范圍：有固定式、移動式；風冷、水冷型；柴動型、電動型共100多個產品。
| 礦山及工程用活塞式空氣壓縮機參數 | ||||
| 型號 | 配套動力(kW) | 排氣量（m3/min) | 排氣壓力(Mpa) | 外形尺寸（長×寬×高) |
| W-1.35/5-D | 11 | 1.35 | 0.5 | 1390×640×980 |
| W-1.35/5 | S1100 | 1.35 | 0.5 | 1390×640×980 |
| W-1.8/5-J-D | 11 | 1.8 | 0.5 | 1700×710×1000 |
| W-1.8/5-J | S1100 | 1.8 | 0.5 | 1700×710×1000 |
| W-1.8/5-D | 11 | 1.8 | 0.5 | 1700×710×1000 |
| W-1.8/5 | S1100 | 1.8 | 0.5 | 1700×710×1000 |
| W-2/5-D | 11 | 2 | 0.5 | 1700×810×1050 |
| W-2/5 | S1100 | 2 | 0.5 | 1700×810×1050 |
| W-2.6/5-D | 15 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.6/5 | S1110 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.8/5-D | 15 | 2.8 | 0.5 | 1780×870×1235 |
| W-2.8/5 | S1110 | 2.8 | 0.5 | 1780×870×1235 |

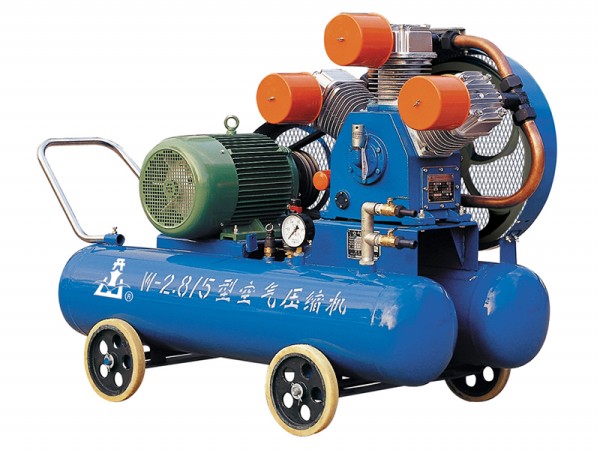

| W-2.8/5-G-D | 15 | 2.8 | 0.5 | 1780×870×1235 |
| W-2.8/5-G | S1115 | 2.8 | 0.5 | 1780×870×1235 |
| W-2.8/5-G-DZ | 15 | 2.8 | 0.5 | 1780×870×1235 |
| W-3/5-D | 18.5 | 3 | 0.5 | 1800×900×1300 |
| W-3/5 | S1115 | 3 | 0.5 | 1800×900×1300 |
| 2V-3.5/5-D | 18.5 | 3.5 | 0.5 | 1800×950×1300 |
| 2V-3.5/5 | S1125 | 3.5 | 0.5 | 1800×950×1300 |
| 2V-4/5-D | 18.5 | 4 | 0.5 | 1800×950×1300 |
| 2V-4/5 | S1125 | 4 | 0.5 | 1800×950×1300 |
| W-1.8/7-D | 11 | 1.8 | 0.7 | 1100×820×1100 |
| W-1.8/7 | S1100 | 1.8 | 0.7 | 1100×820×1100 |
| W-2.6/7-D | 15 | 2.6 | 0.7 | 1800×870×1235 |
| W-2.6/7 | S1115 | 2.6 | 0.7 | 1800×870×1235 |
| W-3.2/7-D | 18.5 | 3.2 | 0.7 | 1920×960×1350 |
| W-3.2/7 | S1125 | 0.7 | 0.7 | 1920×960×1350 |
| W-2.5/3-D | 11 | 2.5 | 0.3 | 1780×870×1235 |
| W-2.5/3 | S1110 | 2.5 | 0.3 | 1780×870×1235 |
| VF-3/7 | 18.5 | 3 | 0.7 | 1720×1100×1110 |
| VF-6/7 | 37 | 6 | 0.7 | 2100×1100×1110 |
| VFY-6/7 | 37 | 6 | 0.7 | 2830×1500×1890 |
| VF-7/7 | 40 | 7 | 0.7 | 2100×1100×1110 |
| CVF7/7 | YC4108 | 7 | 0.7 | 2760×1200×1460 |
| CVF7/7 | QC4110 | 7 | 0.7 | 2760×1200×1460 |
| VFY-7/7 | 40 | 7 | 0.7 | 2830×1500×1890 |
| CVFY-7/7 | YC4108 | 7 | 0.7 | 2830×1300×1890 |
| CVFY-7/7 | QC4110 | 7 | 0.7 | 2830×1300×1890 |
| VF-9/7 | 55 | 9 | 0.7 | 2460×1200×1220 |
| VFY-9/7 | 55 | 9 | 0.7 | 2830×1500×1900 |
| VF-10/7 | 63 | 10 | 0.7 | 2460×1200×1220 |
| VFY-10/7 | 63 | 10 | 0.7 | 2830×1500×1900 |
| CVF-10/7 | YC4108ZG | 10 | 0.7 | 3200×1350×1650 |
| CVF-10/7 | QC4112 | 10 | 0.7 | 3200×1350×1650 |
| CVFY-10/7 | YC4108ZG | 10 | 0.7 | 3200×1550×2230 |
| CVFY-10/7 | QC4112 | 10 | 0.7 | 3200×1550×2230 |
| VF-13/7 | 75 | 13 | 0.7 | 2460×1200×1220 |
| VFY-13/7 | 75 | 13 | 0.7 | 2830×1500×1900 |
| CVF-13/7 | YC6108ZG | 13 | 0.7 | 3300×1350×1470 |
| CVF-13/7 | CUMMINS 6BT5.9-C118 | 13 | 0.7 | 3300×1350×1470 |
| CVF-13/7 | QC6112 | 13 | 0.7 | 3350×1350×2100 |
| CVFY-13/7 | YC6108ZG | 13 | 0.7 | 3500×1600×2640 |
| CVFY-13/7 | CUMMINS 6BT5.9-C118 | 13 | 0.7 | 3500×1600×2340 |
| CVFY-13/7 | QC6112 | 13 | 0.7 | 3570×1600×2640 |
| 2V-6/7 | 37 | 6 | 0.7 | 1750×1100×1200 |
| 2V-7/7 | 40 | 7 | 0.7 | 1750×1100×1200 |
